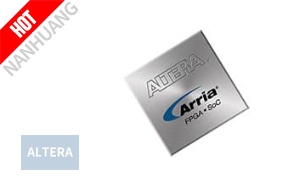

Intel Arria® V FPGA and SoC FPGA

The Arria® V FPGA family offers the highest bandwidth and delivers the lowest total power for midrange applications, such as remote radio units, 10G/40G line cards, and broadcast studio equipment. There are five targeted variants, including SoC variants with a dual-core ARM* Cortex*-A9 hard processor system (HPS) to best meet your performance, power, and integration needs.

Arria® V GZ FPGA

Offers the lowest power-per-bandwidth for midrange applications, and are ideal for power-sensitive designs that require transceivers up to 12.5 Gbps.

Arria® V GT FPGA

Offers the lowest total power for mid-range applications and the lowest power transceivers for speeds up to 10.3125 Gbps.

Arria® V GX FPGA

Offers the lowest total power for mid-range applications and the lowest power transceivers for speeds up to 10.3125 Gbps.

Arria® V ST SoC FPGA

Intel® SoC FPGA with ARM*-based HPS and 10.3125 Gbps transceivers.

Arria® V SX SoC FPGA

Intel® SoC FPGA with ARM*-based HPS and 6.5536 Gbps backplane-capable transceivers.

Intel Arria® V FPGA and SoC FPGA Benefits:

Industry's Lowest Power

Arria® V GZ FPGAs offer the lowest power-per-bandwidth for mid-range applications, and are ideal for power-sensitive designs that require transceivers up to 12.5 Gbps. At 10G data rates, Arria® V GZ FPGAs consume less than 180 mW per channel and at 12.5 Gbps consume less than 200 mW per channel. Arria® V GZ FPGAs also offer a lower static power offering with a -3L speed grade.

Arria® V GX and GT FPGAs offer the lowest total power for mid-range applications by using the 28 nm low power process to deliver the lowest static power, offering the lowest power transceivers for speeds up to 10.3125 Gbps, and providing superior fabric with hard IP designed to lower dynamic power. Arria® V devices provide a 40% on average power reduction compared to the previous generation of midrange FPGAs.

Customizable ARM* Processor-Based SoCs

Intel® SoC FPGAs let you reduce system power, system cost, and board space by integrating a hard processor system (HPS) – consisting of processors, peripherals, and memory controller – with the FPGA fabric using a high-bandwidth interconnect backbone. The combination of the HPS with Intel's 28 nm low-power FPGA fabric provide the performance and ecosystem of an applications-class ARM* processor with the flexibility and digital signal processing (DSP) richness of the Arria® V FPGAs.

Easy Migration Path to Intel® Arria® 10 SoC FPGA

The Arria® V SoC FPGA and Intel® Arria® 10 SoC FPGA utilize the same dual-core ARM* Cortex*-A9 MPCore* processor. Therefore, when your Arria® V SoC FPGA design is ready for a performance upgrade you can easily migrate your software to the Intel® Arria® 10 SoC FPGA. Based on the TSMC 20 nm process, the Intel® Arria® 10 SoC FPGA offers for a performance upgrade path for Arria® V SoC FPGA designs with easy software migration.

Industry’s Highest Performance 28 nm SoC FPGA

• Up to 1.05 GHz dual-core ARM* Cortex*-A9 MPCore* processor
• Four hardened 32-bit memory controllers with up to 533 MHz memory bus speed and optional error correction code (ECC)
• Processor to FPGA interconnect with >125 Gbps peak total bandwidth

Lowest System Power for Midrange Applications

• Integration of multiple components into a single chip
• Lowest power transceivers with speeds up to 10.3125 Gbps
• Based on low power TSMC 28LP process

Multiple Benefits to System Cost

• Integration of multiple components into a single chip
• PCB cost and trace savings from integration of processor, FPGA and DSP into a single device
• No power-off sequencing requirements

Do you know more about Altera's product uses, technical documents, and solutions related to Arria® V FPGA and SoC FPGA? Then quickly get in touch with Altera (Intel) Distributor - NANHUANG!
